Perfect Protection for Stairs and Corners

SkudoBoard CORNER guard is a heavy duty, synthetic, rigid board that is specifically designed to fit perfectly around sharp edges, such as corners, stair treads, and wall edges. SkudoBoard CORNER GUARD is lightweight, easy to install, and extremely impact resistant. No more dents, cracks, scuff marks, and scratches on stairs and edges from carts, equipment, and general construction traffic.

The textured surface of SkudoBoard CORNER GUARD provides high slip resistance in addition to being fire retardant and water resistant. SkudoBoard CORNER GUARD is also resistant to curling and warping - reducing safety hazards on your jobsite. CORNER GUARD has the same compression strength as SkudoBoard delivering protection from dropping objects, keeping your surfaces safe.

SkudoBoard CORNER GUARD is also reusable – saving you time, hassle, and money.

SkudoBoard-Corner-Guard

Perfect Fit

Fits perfectly around corners, stair treads, and wall edges

Water Resistant

Water resistant, can be used on exterior surfaces

Protect Jobsite

Well suited for protecting surfaces from jobsite traffic and debris

Fire & Slip Resistant

Fire Retardant (ASTM E 648 Class 1, 16 CFR 1630) and Test-proven slip resistance in wet conditions (ANSI/NFSI B101.3-2012)

High Impact Resistance

Extremely high impact resistance – spreads impact loads

Light Weight

Light weight, easy to handle and reusable

IMG_9985

Benefits of Use

Skudo products provide protection against:

  • Machinery, carts, ladders, and lifts
  • Scaffolding and shoring
  • Impact from foot traffic and dropped materials
  • Water
  • Spills and stains, including paint, mortar, coffee, cola
  • Rust
  • Mild solvents
  • Mud, dirt, and debris
  • Slip and trip hazards
  • Mold & Bacteria (Select Products)
  • UV (Select Products)
  • Fire and welding sparks (Select Products)

Assessment & Suitability

Corner Guard should not be used on unprepared, uneven ground.

Corner Guard should not be used on freshly placed concrete unless that concrete will be later covered with another finishing product, such as tile, carpet, LVT, etc. Using Corner Guard on uncured concrete can lead to curing lines where the boards are joined.

youtube-video-thumbnail

How to Apply

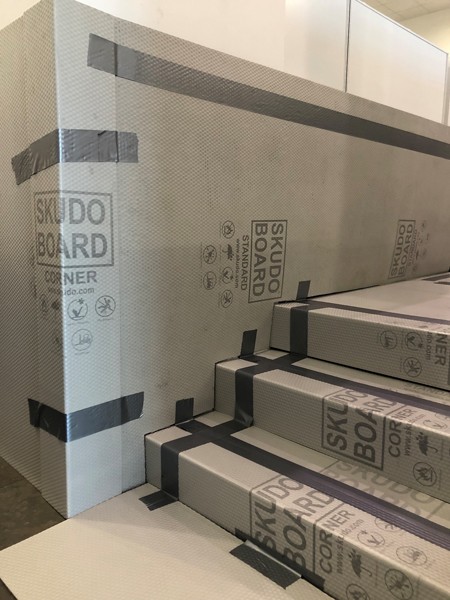

When protecting stair treads, loose lay the corner guard on two stairs, measure the infill requirement, then pre-cut the required amount from SkudoBoard sheets, ready for installation.

From the top, secure the first Corner Guard to a base of SkudoBoard, protecting the top landing; this acts as an anchor point. Continue down the stairs placing infills and secure with 3” SkudoBoard Tape along the joins. If treads are wider than one Corner Guard, secure by taping down the seams.

Corner Guard installed on wall returns prone to damage by carts can be secured using 3M command strips or 3” tape if the walls are protected by SkudoBoard, Column Guard, or Tack Mat.

SkudoBoard-Corner-Guard-How-To-1
SkudoBoard-Corner-Guard-How-To-3

Frequently Asked Questions

SkudoBoard-Corner-Guard-1

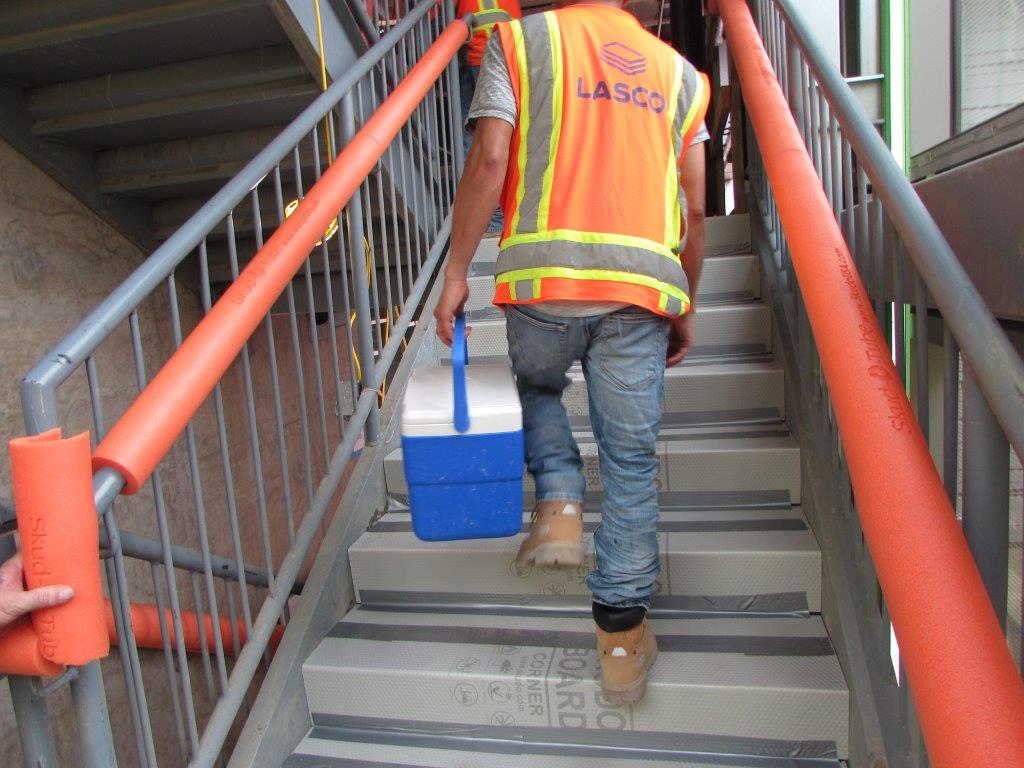

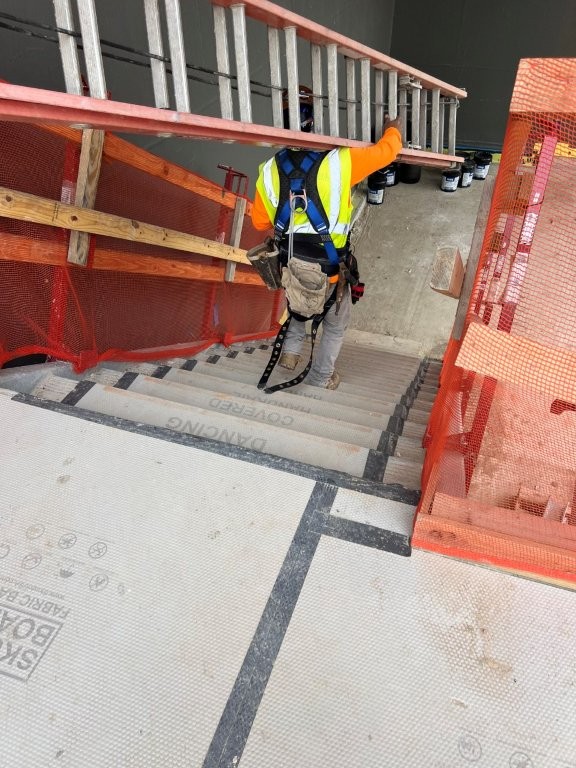

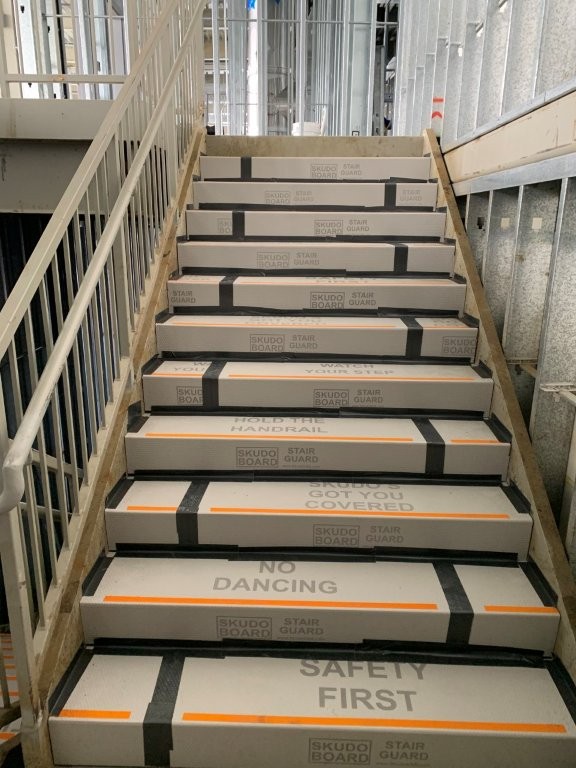

Project Examples

Product Data

SkudoBoard CORNER GUARD

Dimensions: 48” x 6” x 6”
Product SKU #BOARD-CORNER-FR-48x6-AO
Weight: 1.25 lbs/pc
Thickness: 1/4”
Color: Light Gray

SkudoBoard-Corner-Guard-2
